“Kebab” is an optional (additive function) system for the “UJF” series of flatbed UV printers. In addition to printing on flat surfaces with the printer alone, this system enables 360 deg printing on the sides of cylindrical materials such as bottles and tumblers.
The “Kebab HS” has achieved max. 3 times the productivity of the current “Kebab MkII Series” and is also compatible with tapered materials such as glasses and cups, expanding the range of order-made goods that can be directly printed with a UV printer.
Advanced 360° Printing
for Cylindrical and
Tapered Objects
BENEFITS
This high-speed capability allows for efficient handling of medium-lot orders, increasing throughput and reducing turnaround times for customized cylindrical products.
FEATURES
The Kebab HS enables 360-degree direct UV printing on cylindrical objects by rotating them during the printing process. It achieves up to three times the productivity of previous models, significantly reducing production time.
BENEFITS
This flexibility enables businesses to offer personalized printing on a wider variety of products, catering to diverse customer needs and market segments.
FEATURES
The system supports printing on tapered objects with gradient angles up to 7.5°, expanding its application range to items like glasses and cups.
BENEFITS
Quick setup minimizes downtime, allowing businesses to integrate cylindrical printing capabilities into their existing workflows seamlessly.
FEATURES

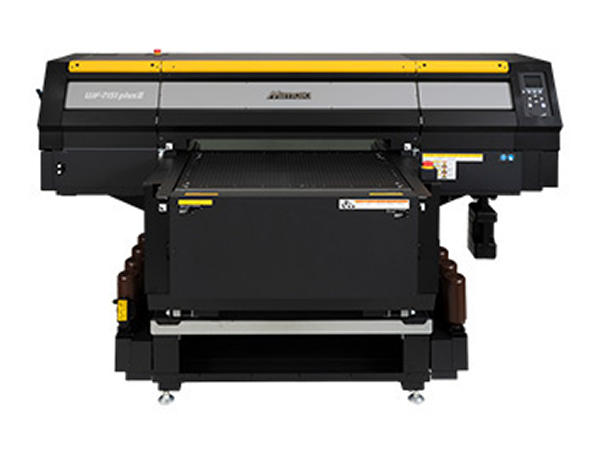

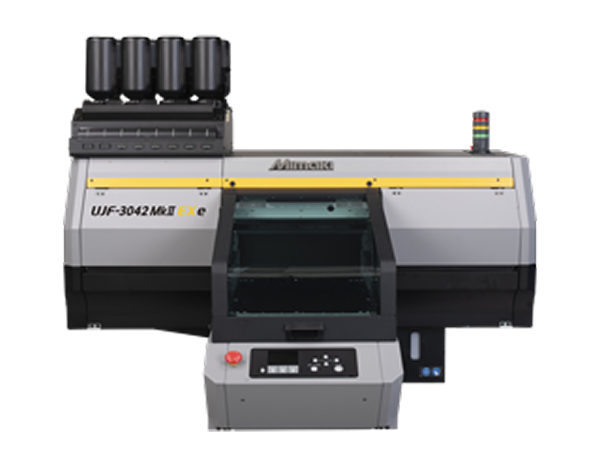

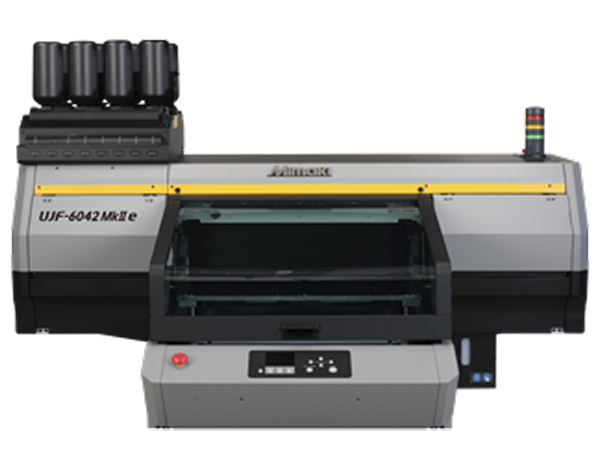

The Kebab HS can be mounted on compatible Mimaki UJF series printers, such as the UJF-3042MkII e, UJF-3042MkII EX e, UJF-6042MkII e, and UJF-7151 plusII. Installation is straightforward, typically completed in about 10 minutes, with support from certified service engineers.
Product Outlines
The Kebab HS is ideal for printing on a variety of cylindrical and tapered items, including:
- 360° direct UV printing on cylindrical products
- Easy installation on compatible Mimaki UV inkjet printers
- Up to 3× faster productivity than previous models
- Supports cylinders up to 100 mm diameter and 300 mm length
- Handles tapered objects with up to 7.5° angle
- Simple job control with RasterLink7 and taper warp correction
Compatible printer model
